Maxi

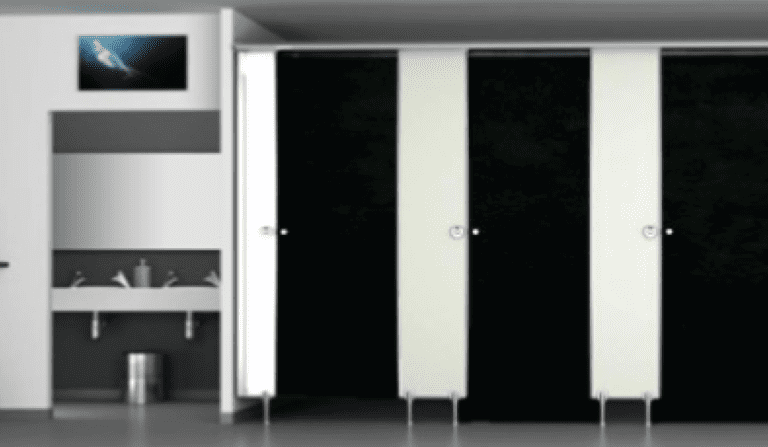

Introducing Maxi series, the modular cubicles that offer the perfect blend of functionality and aesthetics.

Our Product

Maxi


This aesthetically pleasing and sturdy cubicle boasts an adjustable foot composed of Grade 304 stainless steel, securely fastened to the floor with a nylon plug and stainless-steel screws. This foot offers a generous clearance of 150 mm for optimal accessibility for users. The divider panels are affixed to the wall and central panel using robust aluminium U channels and stainless steel screw inserts. The top of the panels is fixed with an anodized aluminium top rail in a sleek stainless steel colour, complete with noise-absorbing tape to minimise sound transmission.



All fittings, including hinges, coat hooks, adjustable feet, and locks with latch indicators, are made from high-quality stainless steel, guaranteeing longevity and durability.

Quick Query for Toilet Cubicle and Partition


Maxi

Dimensions
Standard Dimensions Regular (mm) Specially Abled (mm)
Height of the entire cubicle 1980-2000 1980-2000
Depth of the cubicle 1550 1550
Pilaster height 1830 1830
Pilaster width 150/300 150/300
Height of the door 1815 1815
Width of the door 600 900
Ground clearance 150 150



Special Features


  • The Maxi model is fitted with adjustable stainless-steel foot (grade 316)
  • All aluminium profiles including u channel ,Door stopper channel,F channel
    & Top Rail comes in Natural anodised finish.
  • Maxi model is provided with an adjustable foot with different material
    options, stainless steel grade 304 or 316.
  • The Maxi model is provided with stainless steel gravity hinges and
    doorknobs.
  • It has stainless steel adjustable foot.
